De-Sta-Co

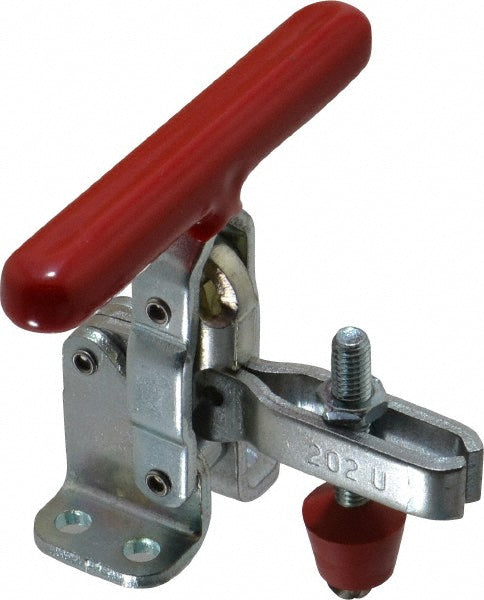

Toggle Clamp - De-Sta-Co 202-TU
MFR# 202-TU
$29.73
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 202-TU is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees105
Bar styleU-Bar
Bar width0.9200
Base length in1
Base styleFlanged
Base width in1.5600
Finish coatingZinc
Front of base to tip of toggle bar1.7300
Front of base to toggle tip1.73in
F 1 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees65
Handle orientationVertical
Handle styleT-Handle
Handle width2.6800
Height under bar0.9400
Holding capacity lb200.00
Holding capacity n890.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.49
MaterialCarbon Steel
Maximum mechanical advantage07:01
Mounting hole diameter0.2200
Number of mounting holes4
Overall height2.8400
Overall length3.4600
Spindle length1-1/2
Spindle thread size1/4-20
Spindle travel in0.9800
Width distance between mount holes1.0600
