De-Sta-Co

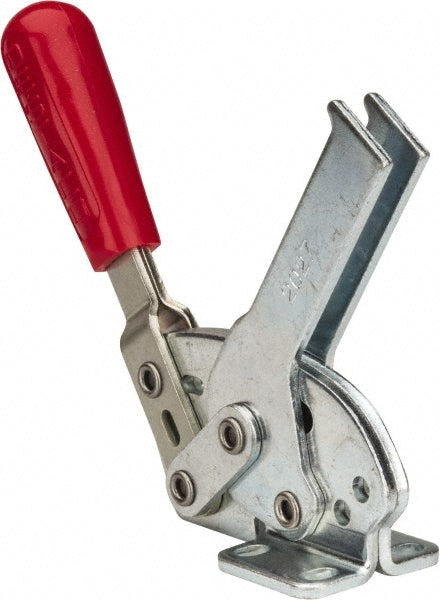

Toggle Clamp - De-Sta-Co 2027-U
MFR# 2027-U
$28.80List $36.16
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 2027-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees68
Bar styleU-Bar
Bar thickness0.1200
Bar width in3/4
Base length (mm)39.62
Base styleFlanged
Base width in1.8100
Finish coatingZinc
Front of base to tip of toggle bar2.8600
Front of base to toggle tip2.86in
F 5 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees70
Handle orientationHorizontal
Handle styleStraight
Height under bar1.3200
Holding capacity lb840.00
Holding capacity n3740.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.03
MaterialCarbon Steel
Maximum mechanical advantage03:01
Mounting hole diameter0.1400
Number of mounting holes4
Overall height2.2500
Overall length9.8800
Spindle length (mm)63.00
Spindle thread sizeM8x1.25
Spindle travel in1.4400
Width distance between mount holes1.2100
