De-Sta-Co

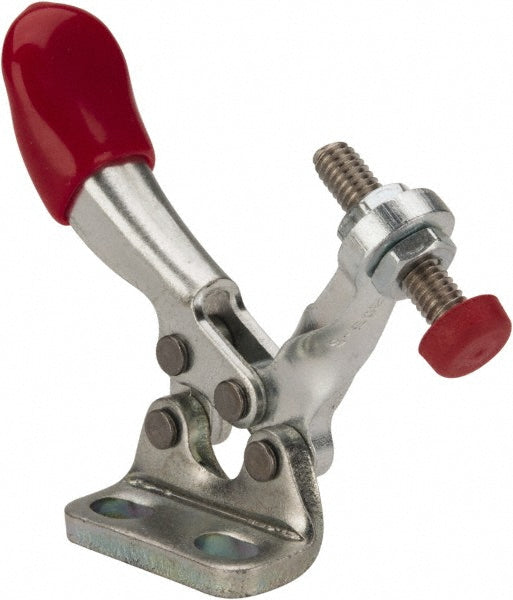

Toggle Clamp - De-Sta-Co 205-SR
MFR# 205-SR
$22.29
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 205-SR is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees94
Bar styleSolid
Bar width in1/4
Base length (mm)61.21
Base styleRight Flanged
Finish coatingZinc
Front of base to tip of toggle bar0.7300
Front of base to toggle tip0.73in
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees82
Handle orientationHorizontal
Handle styleStraight
Height under bar0.3900
Holding capacity lb60.00
Holding capacity n265.00
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in0.62
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.1600
Number of mounting holes2
Overall height0.6700
Overall length2.8500
Spindle length (mm)22.00
Spindle thread sizeM4x0.7
