De-Sta-Co
Toggle Clamp - De-Sta-Co 205-SSS
MFR# 205-SSS
$25.36List $25.64
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

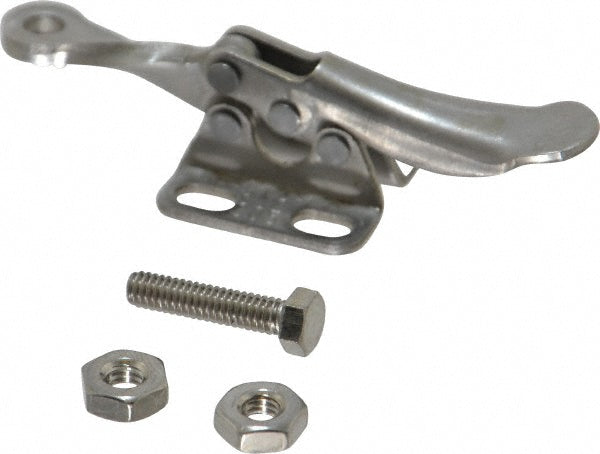

The De-Sta-Co 205-SSS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees94
Bar styleSolid
Bar width in1/4
Base length (mm)61.21
Base styleFlanged
Base width in0.9500
Front of base to tip of toggle bar0.7300
Front of base to toggle tip0.73in
Handle materialStainless Steel
Handle movement degrees82
Handle orientationHorizontal
Handle styleStraight
Height under bar0.3500
Holding capacity lb75.00
Holding capacity n340.00
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in0.62
MaterialStainless Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.1600
Number of mounting holes4
Overall height0.6700
Overall length2.8500
Spindle includedYes
Spindle length0.8600
Spindle thread size8-32
Width distance between mount holes0.6200
