De-Sta-Co

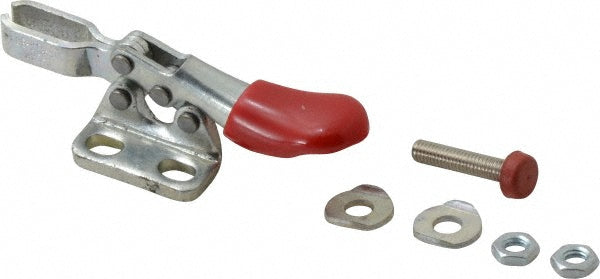

Toggle Clamp - De-Sta-Co 205-UL
MFR# 205-UL
$22.29
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 205-UL is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar width in1/4
Base length (mm)61.21
Base styleLeft Flanged
Finish coatingZinc
Front of base to tip of toggle bar0.7300
Front of base to toggle tip0.73in
F 9 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees80
Handle orientationHorizontal
Handle styleStraight
Height under bar0.3200
Holding capacity lb60.00
Holding capacity n265.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.62
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.1600
Number of mounting holes2
Overall height0.6700
Overall length2.7100
Spindle length (mm)22.00
Spindle thread sizeM4x0.7
Spindle travel in0.3700
