De-Sta-Co

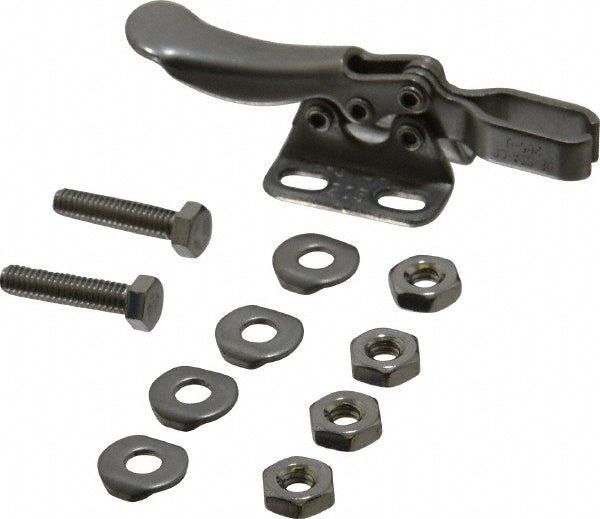

Toggle Clamp - De-Sta-Co 205-USS
MFR# 205-USS
$25.31
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 205-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar width in1/4
Base length (mm)61.21
Base styleFlanged
Base width in0.9500
Finish coatingZinc
Front of base to tip of toggle bar0.7300
Front of base to toggle tip0.73in
F 9 001
Handle materialStainless Steel
Handle movement degrees80
Handle orientationHorizontal
Handle styleStraight
Height under bar0.2900
Holding capacity lb75.00
Holding capacity n340.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.62
MaterialStainless Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.1600
Number of mounting holes4
Overall height0.6700
Overall length2.7100
Spindle length0.8600
Spindle thread size8-32
Spindle travel in0.3700
Width distance between mount holes0.6200
