De-Sta-Co

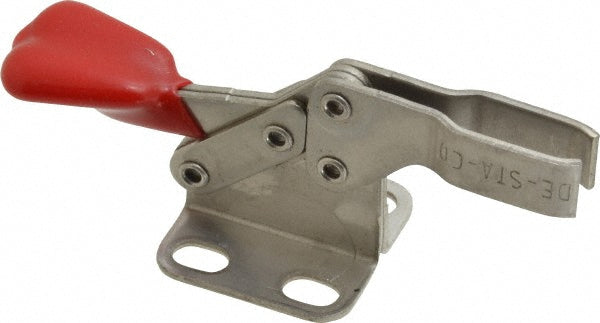

Toggle Clamp - De-Sta-Co 206-HSS
MFR# 206-HSS
$38.61
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 206-HSS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar width0.3100
Base length (mm)23.88
Base styleFlanged
Base width in0.9400
Finish coatingZinc
Front of base to tip of toggle bar0.9500
Front of base to toggle tip0.95in
F 5 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees90
Handle orientationHorizontal
Handle styleStraight
Handle width0.6200
Height under bar0.7600
Holding capacity lb100.00
Holding capacity n440.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.63
MaterialStainless Steel
Maximum mechanical advantage03:01
Number of mounting holes4
Overall height1.0600
Overall length2.7400
Spindle length0.8600
Spindle thread size8-32
Spindle travel in0.3500
Width distance between mount holes0.6300
