De-Sta-Co

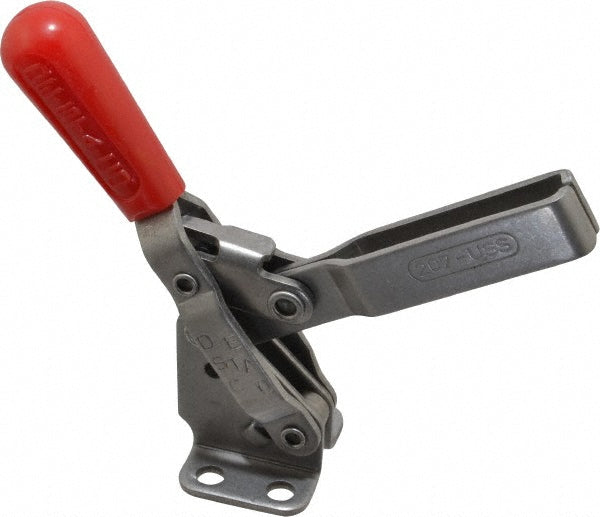

Toggle Clamp - De-Sta-Co 207-35
MFR# 207-35
$68.26List $76.27
Save 10%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207-35 is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees99
Bar styleU-Bar
Bar width0.6300
Base length (mm)35.05
Base styleFlanged
Base width in1.7300
Finish coatingZinc
Front of base to tip of toggle bar2.2100
Front of base to toggle tip2.21in
F 0 101
Handle colorRed
Handle materialStainless Steel
Handle movement degrees57
Handle orientationVertical
Handle styleStraight
Height under bar1.2500
Holding capacity lb450.00
Holding capacity n2000.00
Includes(2) Flanged Washers
Length distance between mount holes in0.75
MaterialStainless Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height6.9300
Overall length4.3800
Spindle length2-1/4
Spindle thread size5/16-18
Spindle travel in2.1300
Width distance between mount holes1.2500
