De-Sta-Co

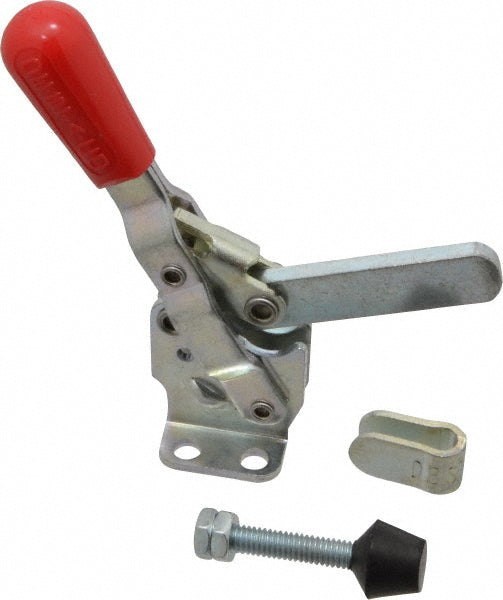

Toggle Clamp - De-Sta-Co 207-38
MFR# 207-38
$33.23
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207-38 is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees99
Bar styleSolid
Bar thickness0.2400
Bar width0.6300
Base length (mm)35.05
Base styleFlanged
Base width in1.7300
Finish coatingZinc
Front of base to tip of toggle bar2.2100
Front of base to toggle tip2.21in
F 0 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleStraight
Height under bar1.2500
Holding capacity lb500.00
Holding capacity n2220.00
IncludesBolt Retainer
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage07:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height6.9300
Overall length3.7500
Spindle length2-1/4
Spindle thread size5/16-18
Width distance between mount holes1.2500
