De-Sta-Co

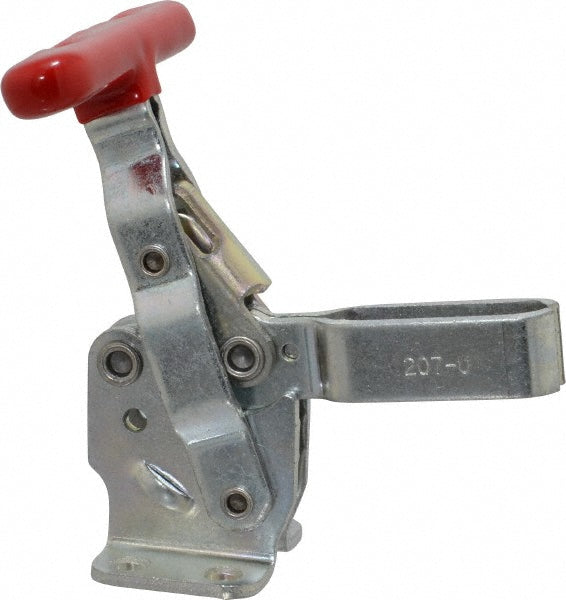

Toggle Clamp - De-Sta-Co 207-49
MFR# 207-49
$60.10
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207-49 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees99
Bar styleU-Bar
Bar width0.6300
Base length (mm)35.05
Base styleFlanged
Base width in1.7300
Finish coatingZinc
Front of base to tip of toggle bar2.1400
Front of base to toggle tip2.14in
F 6 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleT-Handle
Handle width3.0000
Height under bar1.2500
Holding capacity lb375.00
Holding capacity n1670.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height6.9300
Overall length3.7500
Spindle length2-1/4
Spindle thread size5/16-18
Spindle travel in1.3000
Width distance between mount holes1.2500
