De-Sta-Co

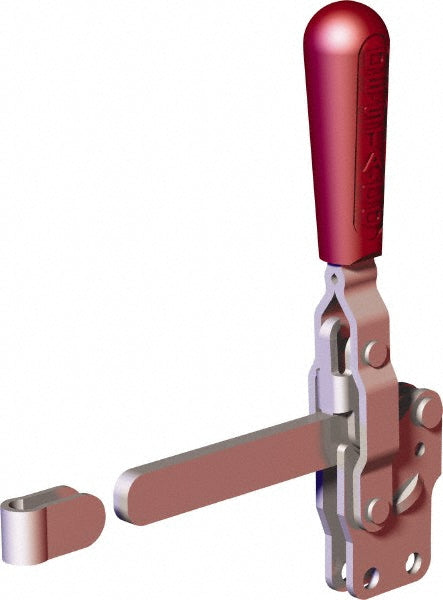

Toggle Clamp - De-Sta-Co 207-LB
MFR# 207-LB
$22.26List $27.94
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207-LB is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees99
Bar styleSolid
Bar thickness0.2400
Bar width0.6300
Base length (mm)35.05
Base styleStraight
Front of base to tip of toggle bar3.4800
Front of base to toggle tip3.48in
F 0 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleStraight
Height under bar1.5500
Holding capacity lb499.08
Holding capacity n2220.00
IncludesBolt Retainer
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height7.4800
Width distance between mount holes0.2400
