De-Sta-Co

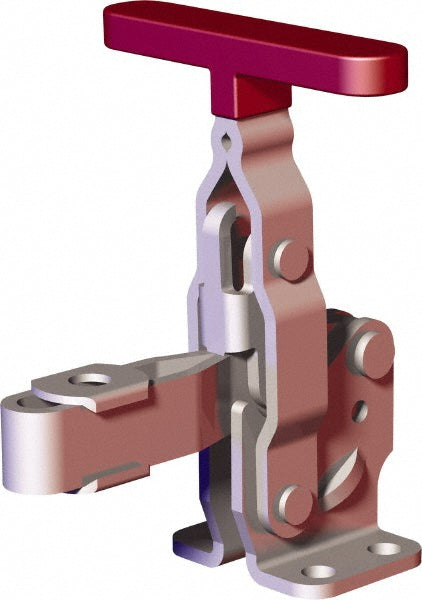

Toggle Clamp - De-Sta-Co 207-TU
MFR# 207-TU
$37.45List $37.49
Save 0%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207-TU is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees99
Bar styleU-Bar
Base length (mm)35.05
Base styleFlanged
Base width in1.7300
Front of base to tip of toggle bar2.1400
Front of base to toggle tip2.14in
F 6 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleT-Handle
Height under bar1.2500
Holding capacity lb375.43
Holding capacity n1670.00
IncludesFlanged Washers
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height6.9300
Spindle travel in1.3000
Width distance between mount holes1.2500
