De-Sta-Co

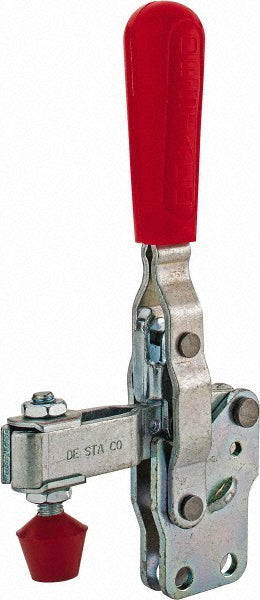

Toggle Clamp - De-Sta-Co 207-UB
MFR# 207-UB
$21.30List $26.27
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207-UB is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees99
Bar styleU-Bar
Bar width0.6300
Base length (mm)35.05
Base styleStraight
Front of base to tip of toggle bar2.1400
Front of base to toggle tip2.14in
F 2 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleStraight
Height under bar1.5500
Holding capacity lb375.43
Holding capacity n1670.00
IncludesFlanged Washers; Spindle Assembly
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage06:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height7.4800
Spindle travel in1.3000
Width distance between mount holes0.2400
