De-Sta-Co

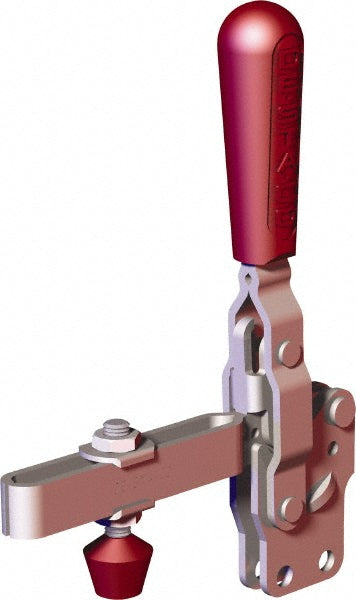

Toggle Clamp - De-Sta-Co 207-ULB
MFR# 207-ULB
$22.10List $27.74
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207-ULB is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees99
Bar styleU-Bar
Bar width0.6300
Base length (mm)35.05
Base styleStraight
Front of base to tip of toggle bar3.8400
Front of base to toggle tip3.84in
F 7 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleStraight
Height under bar1.5500
Holding capacity lb375.43
Holding capacity n1670.00
IncludesFlanged Washers; Spindle Assembly
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height7.4800
Spindle travel in2.9400
Width distance between mount holes0.2400
