De-Sta-Co

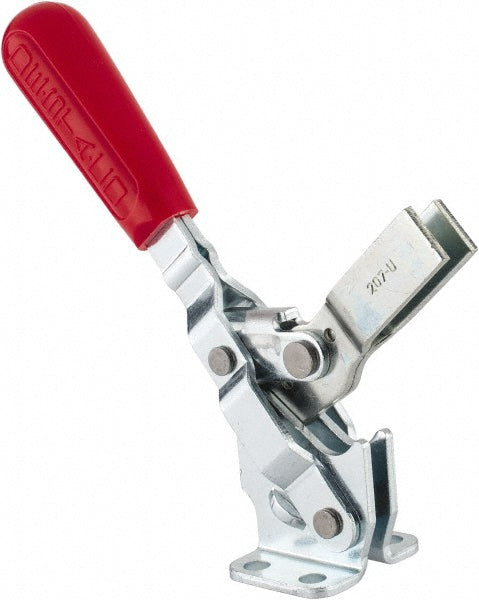

Toggle Clamp - De-Sta-Co 207U-L
MFR# 207U-L
$33.73
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 207U-L is a carbon steel toggle clamp.
Specifications
Bar end typeOpen
Bar opening degrees99
Bar styleU-Bar
Bar width0.6300
Base length (mm)35.05
Base styleFlanged
Base width in1.7300
Front of base to tip of toggle bar1.8100
Front of base to toggle tip1.81in
F 7 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees57
Handle orientationVertical
Handle styleStraight
Height under bar1.2500
Holding capacity lb375.43
Holding capacity n1670.00
IncludesFlanged Washers
Length distance between mount holes in0.75
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height6.9300
Spindle travel in2.9400
Width distance between mount holes1.2500
