De-Sta-Co

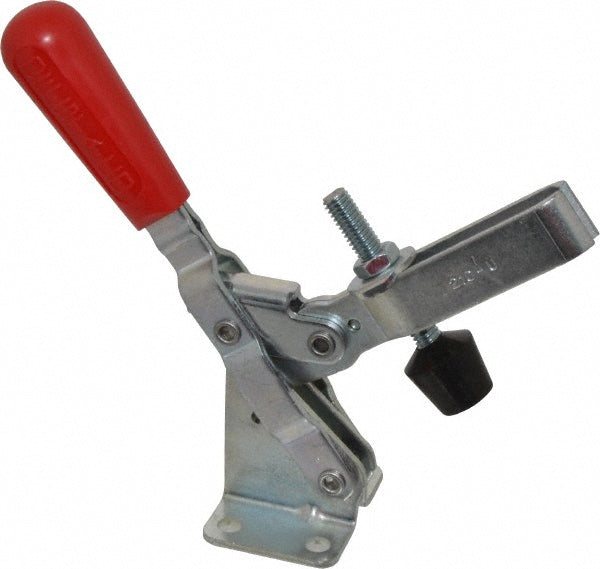

Toggle Clamp - De-Sta-Co 210-25
MFR# 210-25
$27.07List $33.98
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 210-25 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees103
Bar styleU-Bar
Bar width0.7900
Base length (mm)48.01
Base styleFlanged
Base width in2.5600
Finish coatingElectro-Plated Zinc
Front of base to tip of toggle bar3.6500
Front of base to toggle tip3.65in
F 4 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees58
Handle orientationVertical
Handle styleStraight
Height under bar1.6700
Holding capacity lb600.00
Holding capacity n2670.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in1.25
MaterialCarbon Steel
Maximum mechanical advantage07:01
Mounting hole diameter0.3300
Number of mounting holes4
Overall height8.1900
Overall length5.5100
Spindle length3-1/4
Spindle thread size3/8-16
Spindle travel in2.3500
Width distance between mount holes1.7700
