De-Sta-Co

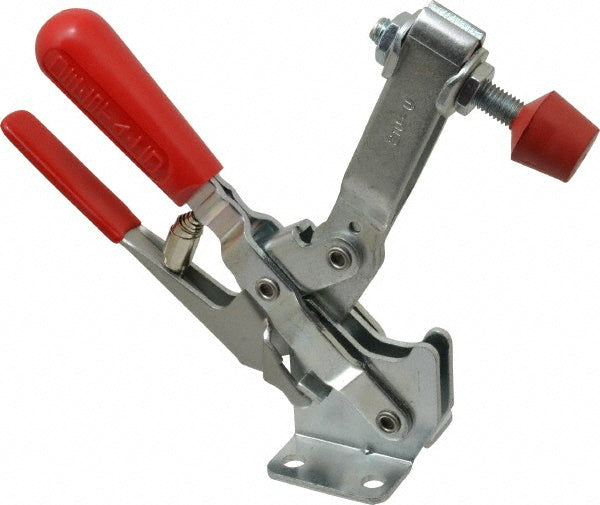

Toggle Clamp - De-Sta-Co 210-UR
MFR# 210-UR
$68.25List $72.08
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 210-UR is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees103
Bar styleU-Bar
Bar width0.7900
Base length (mm)48.01
Base styleFlanged
Base width in2.5600
Finish coatingZinc
Front of base to tip of toggle bar3.6500
Front of base to toggle tip3.65in
F 4 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees58
Handle orientationVertical
Handle styleStraight
Height under bar1.6700
Holding capacity lb600.00
Holding capacity n2670.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Industry number210-UR
Length distance between mount holes in1.26
MaterialCarbon Steel
Maximum mechanical advantage07:01
Mounting hole diameter0.3300
Number of mounting holes4
Overall height5.4300
Overall length6.7000
Spindle includedYes
Spindle thread size3/8-16
Spindle travel in2.3500
Width distance between mount holes1.7700
