De-Sta-Co

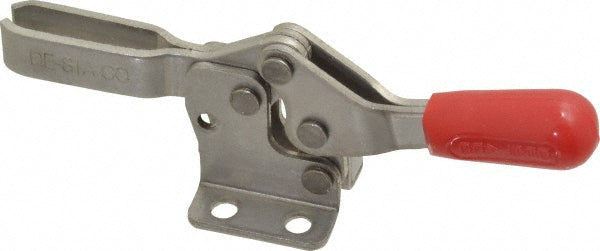

Toggle Clamp - De-Sta-Co 213-USS
MFR# 213-USS
$34.85List $35.24
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 213-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar width0.3700
Base length in1
Base styleFlanged
Base width in1.0600
Finish coatingZinc
Front of base to tip of toggle bar1.4200
Front of base to toggle tip1.42in
F 7 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees60
Handle orientationHorizontal
Handle styleStraight
Height under bar0.6600
Holding capacity lb150.00
Holding capacity n665.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.53
MaterialStainless Steel
Maximum mechanical advantage03:01
Mounting hole diameter0.0800
Number of mounting holes4
Overall height1.3900
Overall length4.0500
Spindle length1.1300
Spindle thread size10-32
Spindle travel in0.8500
Width distance between mount holes0.7500
