De-Sta-Co

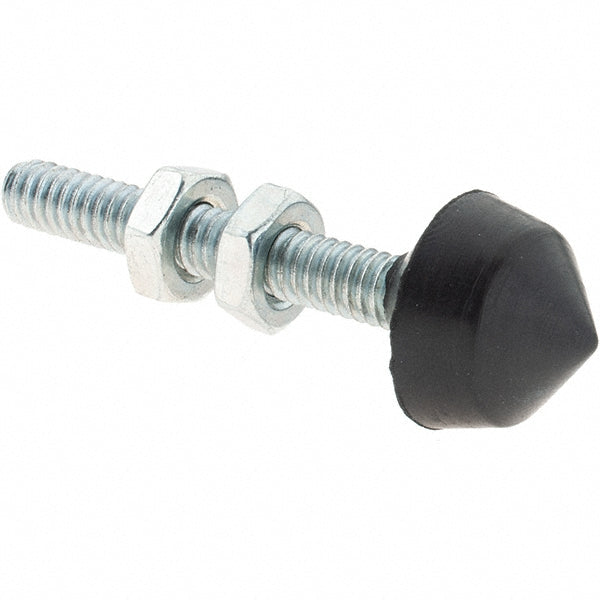

1/4-20 in Clamping Accessory - De-Sta-Co 213208
MFR# 213208
$3.32List $4.17
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 213208 is a 1/4-20 in clamping accessory.
Specifications
ApplicationToggle Clamps
For use with213 Horizontal Hold Down Clamp
IncludesJam Nuts
Minimum operating temperature-22F
Nut height0.16in; 4.06mm
Nut height (mm)4.06
Overall length in2.25in; 57.15mm
Spindle materialCarbon Steel
Thread length (mm)1.56
Thread size1/4-20 in
Tip cap hardness70-80A
Tip cap materialNeoprene
Tip cap shapeCone
Tip maximum diameter0.7500
Tip surface diameter0.6300
Tip typeCap
