De-Sta-Co

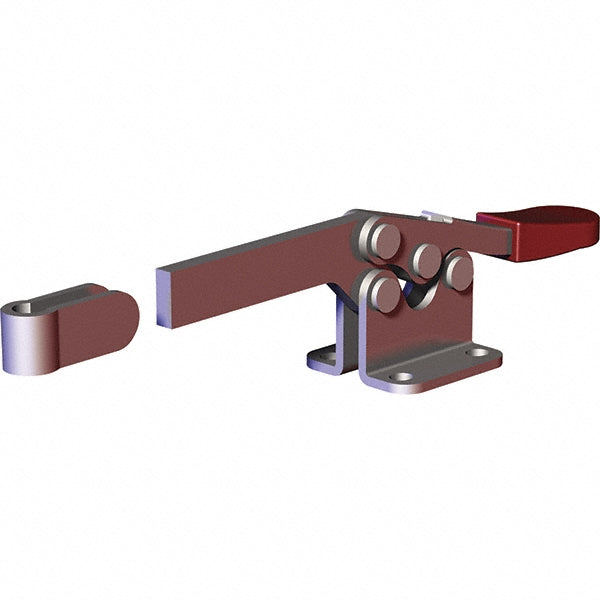

Toggle Clamp - De-Sta-Co 215-S
MFR# 215-S
$23.59List $24.68
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 215-S is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees87
Bar styleSolid
Bar thickness0.1900
Bar width in1/2
Base length (mm)36.32
Base styleFlanged
Base width in1.3800
Finish coatingZinc
Front of base to tip of toggle bar2.2500
Front of base to toggle tip2.25in
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees78
Handle orientationHorizontal
Handle styleStraight
Height under bar1.0000
Holding capacity lb200.00
Holding capacity n890.00
Length distance between mount holes in1.06
MaterialCarbon Steel
Maximum mechanical advantage06:01
Mounting hole diameter0.2000
Number of mounting holes4
Overall height1.5300
Overall length5.4600
Spindle length (mm)44.00
Spindle thread sizeM6x1.0
Width distance between mount holes0.8700
