De-Sta-Co

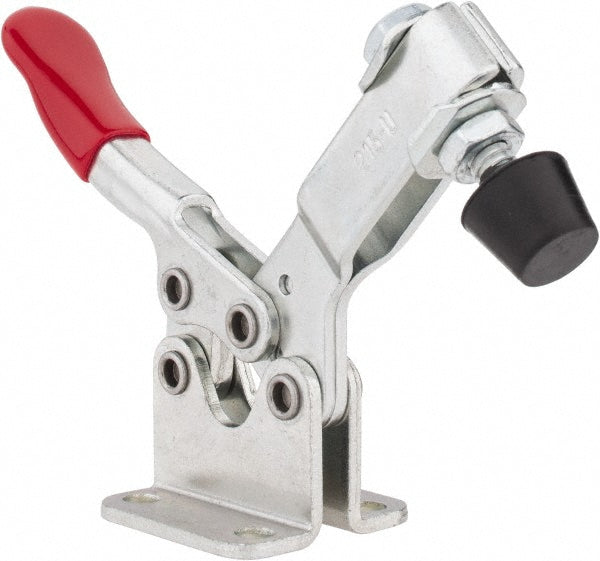

Toggle Clamp - De-Sta-Co 215-U
MFR# 215-U
$13.37List $16.78
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 215-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees87
Bar styleU-Bar
Bar width in1/2
Base length (mm)36.32
Base styleFlanged
Base width in1.3800
Finish coatingZinc
Front of base to tip of toggle bar2.2500
Front of base to toggle tip2.25in
F 9 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees78
Handle orientationHorizontal
Handle styleStraight
Height under bar1.0000
Holding capacity lb200.00
Holding capacity n890.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.06
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.2000
Number of mounting holes4
Overall height1.5300
Overall length5.4600
Spindle length (mm)44.00
Spindle thread sizeM6x1.0
Spindle travel in1.2600
Width distance between mount holes0.8700
