De-Sta-Co

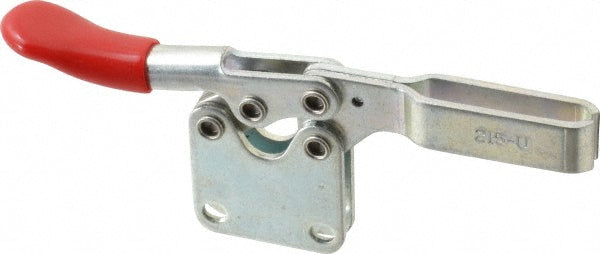

Toggle Clamp - De-Sta-Co 215-UB
MFR# 215-UB
$26.96
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 215-UB is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees87
Bar styleU-Bar
Bar width in1/2
Base length (mm)36.32
Base styleStraight
Base width in1.3800
Finish coatingZinc
Front of base to tip of toggle bar2.2500
Front of base to toggle tip2.25in
F 9 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees78
Handle orientationHorizontal
Handle styleStraight
Height under bar1.1500
Holding capacity lb200.00
Holding capacity n890.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.06
MaterialCarbon Steel
Maximum mechanical advantage04:01
Mounting hole diameter0.2000
Number of mounting holes4
Overall height1.9100
Overall length5.4600
Spindle length (mm)44.00
Spindle thread sizeM6x1.0
Spindle travel in1.2600
Width distance between mount holes0.8700
