De-Sta-Co

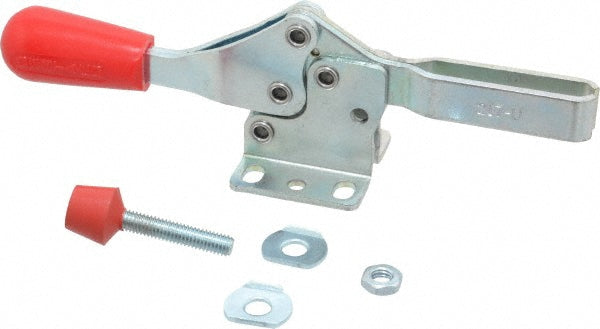

Toggle Clamp - De-Sta-Co 217-U
MFR# 217-U
$16.33List $20.50
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 217-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees91
Bar styleU-Bar
Bar width0.4900
Base length (mm)37.08
Base styleFlanged
Base width in1.5500
Finish coatingZinc
Front of base to tip of toggle bar2.3000
Front of base to toggle tip2.30in
F 7 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees61
Handle orientationHorizontal
Handle styleStraight
Height under bar0.9200
Holding capacity lb200.00
Holding capacity n890.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.03
MaterialCarbon Steel
Maximum mechanical advantage03:01
Mounting hole diameter0.2200
Number of mounting holes6
Overall height1.9500
Overall length6.5800
Spindle length (mm)44.00
Spindle thread sizeM6x1.0
Spindle travel in1.5400
Width distance between mount holes1.1200
