De-Sta-Co

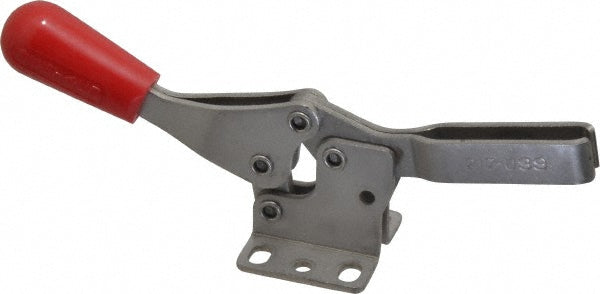

Toggle Clamp - De-Sta-Co 217-USS
MFR# 217-USS
$42.87
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 217-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees91
Bar styleU-Bar
Bar width0.4900
Base length (mm)37.08
Base styleFlanged
Base width in1.5500
Finish coatingZinc
Front of base to tip of toggle bar2.3000
Front of base to toggle tip2.30in
F 7 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees61
Handle orientationHorizontal
Handle styleStraight
Height under bar0.9300
Holding capacity lb250.00
Holding capacity n1110.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.03
MaterialStainless Steel
Maximum mechanical advantage03:01
Mounting hole diameter0.2200
Number of mounting holes6
Overall height1.9500
Overall length6.5800
Spindle length1.5000
Spindle thread size1/4-20
Spindle travel in1.5400
Width distance between mount holes1.1200
