De-Sta-Co

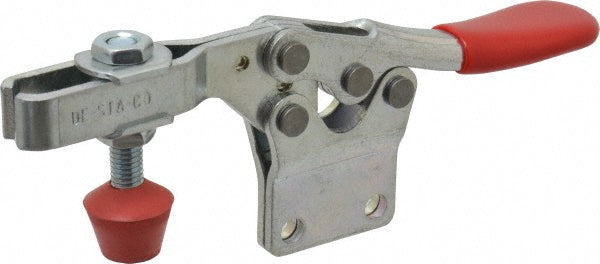

Toggle Clamp - De-Sta-Co 225-UB
MFR# 225-UB
$31.07
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 225-UB is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees92
Bar styleU-Bar
Bar width in1/2
Base length in1-1/2
Base styleStraight
Finish coatingZinc
Front of base to tip of toggle bar2.6900
Front of base to toggle tip2.69in
F 2 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees70
Handle orientationHorizontal
Handle styleStraight
Height under bar1.5600
Holding capacity lb500.00
Holding capacity n2220.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.0
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.2600
Number of mounting holes4
Overall height2.1300
Overall length6.9100
Spindle length (mm)53.00
Spindle thread sizeM8x1.25
Spindle travel in1.3800
