De-Sta-Co

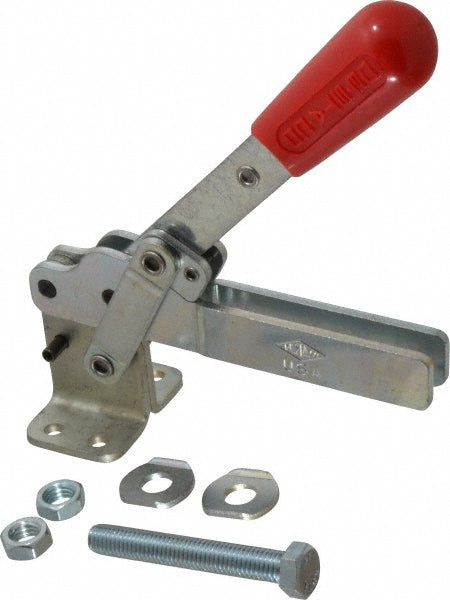

Toggle Clamp - De-Sta-Co 229
MFR# 229
$140.29
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 229 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees115
Bar styleU-Bar
Bar width in1
Base length (mm)47.75
Base styleFlanged
Base width in2.7500
Finish coatingZinc
Front of base to tip of toggle bar5.2600
Front of base to toggle tip5.26in
F 7 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees180
Handle orientationVertical
Handle styleStraight
Height under bar2.0500
Holding capacity lb1000.00
Holding capacity n4450.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.88
MaterialCarbon Steel
Maximum mechanical advantage03:01
Mounting hole diameter0.3300
Number of mounting holes4
Overall height10.3000
Overall length7.1300
Spindle length3-5/16
Spindle thread size1/2-13
Spindle travel in3.8100
Width distance between mount holes2.0000
