De-Sta-Co

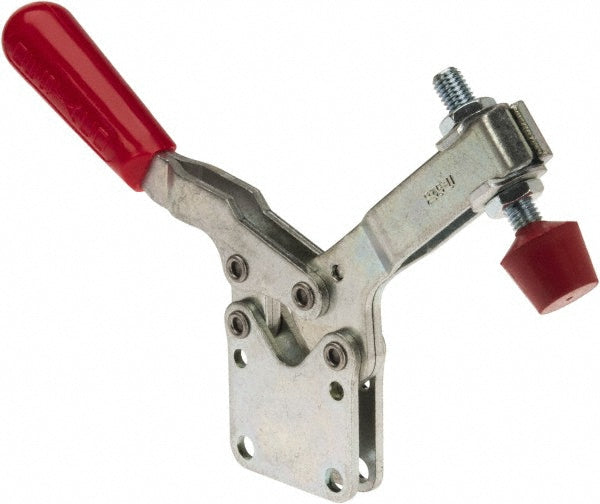

Toggle Clamp - De-Sta-Co 235-UB
MFR# 235-UB
$52.14
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 235-UB is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees92
Bar styleU-Bar
Bar width in3/4
Base length in2-1/4
Base styleStraight
Finish coatingZinc
Front of base to tip of toggle bar4.1600
Front of base to toggle tip4.16in
F 9 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees70
Handle orientationHorizontal
Handle styleStraight
Height under bar2.0900
Holding capacity lb750.00
Holding capacity n3335.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.63
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.3300
Number of mounting holes4
Overall height2.9100
Overall length10.7000
Spindle length (mm)79.00
Spindle thread sizeM10x1.5
Spindle travel in2.4000
Width distance between mount holes0.3100
