De-Sta-Co

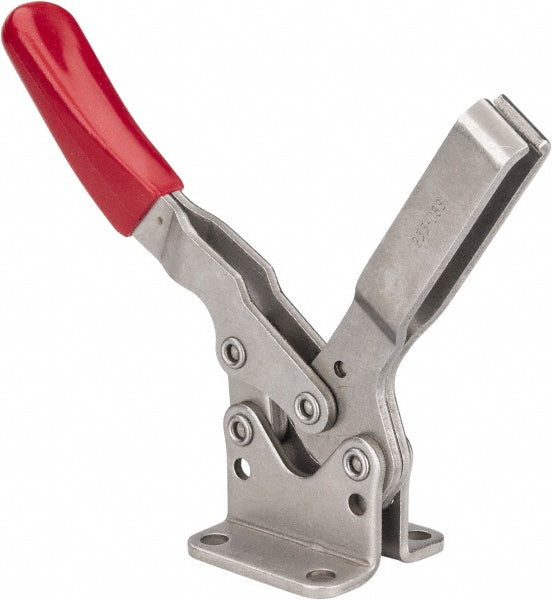

Toggle Clamp - De-Sta-Co 235-USS
MFR# 235-USS
$93.66
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 235-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees92
Bar styleU-Bar
Bar width in3/4
Base length in2-1/4
Base styleFlanged
Base width in2.2600
Finish coatingZinc
Front of base to tip of toggle bar4.1600
Front of base to toggle tip4.16in
F 9 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees70
Handle orientationHorizontal
Handle styleStraight
Height under bar1.7500
Holding capacity lb850.00
Holding capacity n3780.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.63
MaterialStainless Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.3300
Number of mounting holes4
Overall height2.5000
Overall length10.7000
Spindle length2.5000
Spindle thread size3/8-16
Spindle travel in2.4000
Width distance between mount holes1.6300
