De-Sta-Co

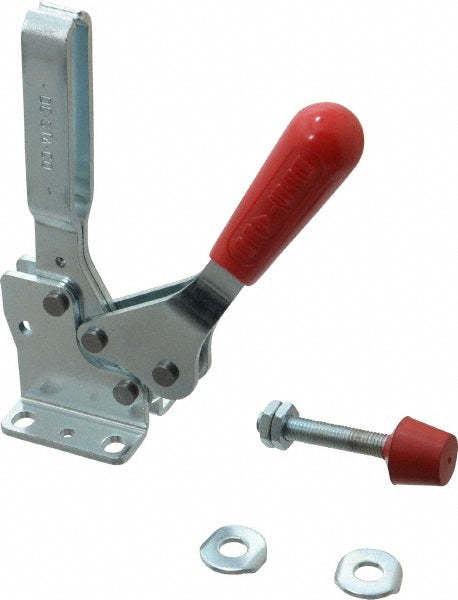

Toggle Clamp - De-Sta-Co 237-U
MFR# 237-U
$37.00List $45.63
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 237-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees93
Bar styleU-Bar
Bar width in3/4
Base length (mm)56.90
Base styleFlanged
Base width in2.2800
Finish coatingZinc
Front of base to tip of toggle bar3.9800
Front of base to toggle tip3.98in
F 6 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees59
Handle orientationHorizontal
Handle styleStraight
Height under bar1.6700
Holding capacity lb750.00
Holding capacity n3335.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.61
MaterialCarbon Steel
Maximum mechanical advantage02:01
Mounting hole diameter0.2300 (Small); 0.3500 (Large)
Number of mounting holes6
Overall height3.1800
Overall length10.6700
Spindle length (mm)79.00
Spindle thread sizeM10x1.5
Spindle travel in2.7600
Width distance between mount holes1.6900
