De-Sta-Co

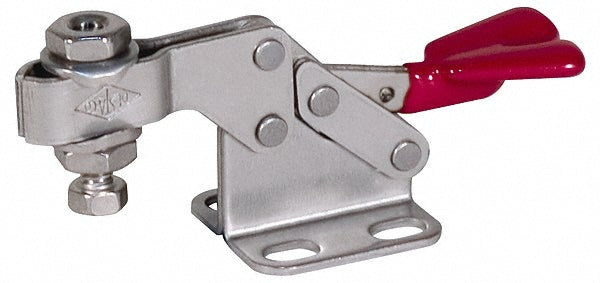

Toggle Clamp - De-Sta-Co 237-USS
MFR# 237-USS
$164.02
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 237-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees93
Bar styleU-Bar
Bar width in3/4
Base length (mm)56.90
Base styleFlanged
Base width in2.2800
Finish coatingZinc
Front of base to tip of toggle bar3.9800
Front of base to toggle tip3.98in
F 6 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees59
Handle orientationHorizontal
Handle styleStraight
Height under bar1.6700
Holding capacity lb850.00
Holding capacity n3780.99
IncludesFlanged Washers; Spindle Assembly
Length distance between mount holes in1.61
MaterialStainless Steel
Maximum mechanical advantage02:01
Mounting hole diameter0.2300 (Small); 0.3500 (Large)
Number of mounting holes6
Overall height3.1800
Overall length10.6700
Spindle length2.5000
Spindle travel in2.7600
Width distance between mount holes1.6900
