De-Sta-Co

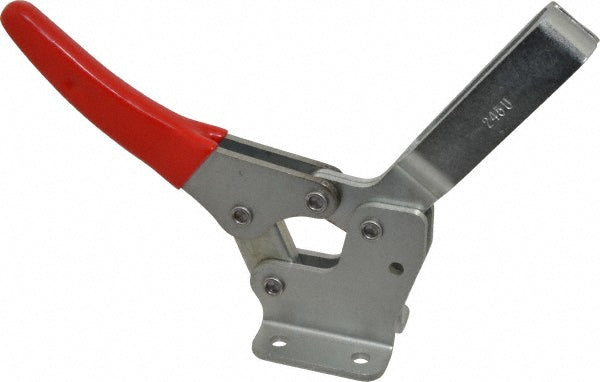

Toggle Clamp - De-Sta-Co 245-U
MFR# 245-U
$55.89List $68.94
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 245-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees105
Bar styleU-Bar
Bar width in1
Base length (mm)66.80
Base styleFlanged
Base width in2.6200
Finish coatingZinc
Front of base to tip of toggle bar4.8700
Front of base to toggle tip4.87in
F 1 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees74
Handle orientationHorizontal
Handle styleStraight
Height under bar2.1900
Holding capacity lb1000.00
Holding capacity n4450.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in1.63
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.3400
Number of mounting holes4
Overall height4.2400
Overall length12.2300
Spindle length3.3100
Spindle thread size1/2-13
Spindle travel in3.2000
Width distance between mount holes1.6200
