De-Sta-Co

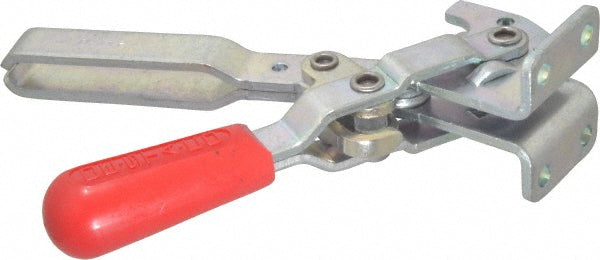

Toggle Clamp - De-Sta-Co 247-U
MFR# 247-U
$40.91List $50.45
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 247-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees120
Bar styleU-Bar
Bar width0.8700
Base length (mm)50.80
Base styleFlanged
Base width in2.5200
Finish coatingZinc
Front of base to tip of toggle bar4.8800
Front of base to toggle tip4.88in
F 0 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees67
Handle orientationVertical
Handle styleStraight
Height under bar2.0000
Holding capacity lb1000.00
Holding capacity n4450.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in1.26
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.3500
Number of mounting holes4
Overall height8.8600
Overall length6.8800
Spindle thread sizeM12x1.75
Spindle travel in3.1500
Width distance between mount holes1.7700
