De-Sta-Co

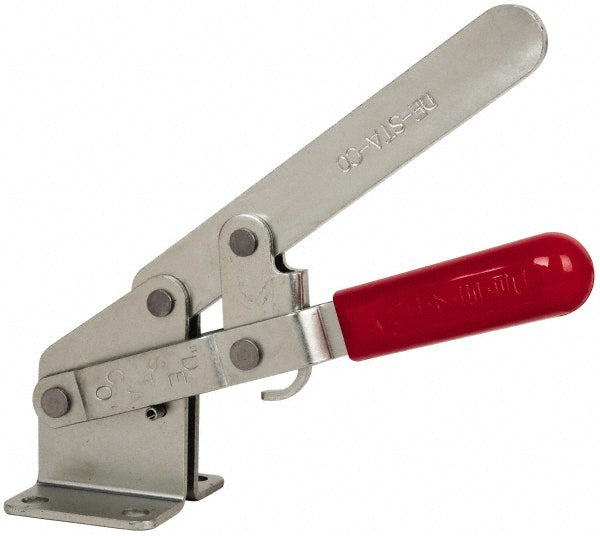

Toggle Clamp - De-Sta-Co 267-S
MFR# 267-S
$125.58
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 267-S is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees140
Bar styleSolid
Bar thickness0.3800
Bar width in1-1/4
Base length (mm)76.20
Base styleFlanged
Base width in3.7400
Front of base to tip of toggle bar5.8800
Front of base to toggle tip5.88in
F 2 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees72
Handle orientationVertical
Handle styleStraight
Height under bar3.0800
Holding capacity lb1200.00
Holding capacity n5340.00
IncludesBolt Retainer
Length distance between mount holes in2.0
MaterialCarbon Steel
Maximum mechanical advantage08:01
Mounting hole diameter0.4800
Number of mounting holes4
Overall height11.9700
Overall length8.8700
Spindle thread size5/8
Width distance between mount holes2.7500
