De-Sta-Co

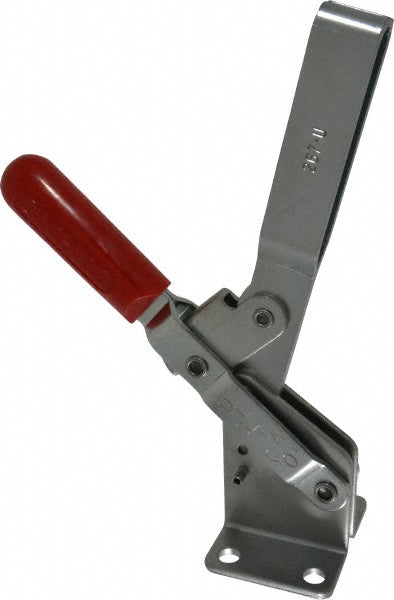

Toggle Clamp - De-Sta-Co 267-U
MFR# 267-U
$67.12List $84.25
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 267-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees140
Bar styleU-Bar
Bar width in1-1/4
Base length (mm)76.20
Base styleFlanged
Base width in3.7400
Front of base to tip of toggle bar5.8700
Front of base to toggle tip5.87in
F 8 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees72
Handle orientationVertical
Handle styleStraight
Height under bar3.0800
Holding capacity lb1200.00
Holding capacity n5340.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in2.0
MaterialCarbon Steel
Maximum mechanical advantage08:01
Mounting hole diameter0.3500
Number of mounting holes4
Overall height11.9700
Overall length8.8700
Spindle thread sizeM16x2
Spindle travel in3.9200
Width distance between mount holes2.7500
