De-Sta-Co

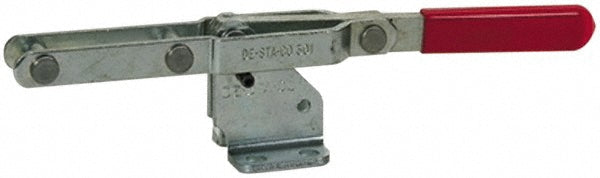

Toggle Clamp - De-Sta-Co 301-SS
MFR# 301-SS
$77.16List $81.87
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 301-SS is a stainless steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.1300
Bar width0.5600
Base length1.38
Base length (mm)35.05
Base styleFlanged
Base to center of bar1.5200
Base width in1.7500
Body materialStainless Steel
Clamping orientationHorizontal
Drawing movement4.0000
Handle colorRed
Handle styleStraight
Industry number301-SS
Length distance between mount holes in3/4
Load capacity2001.7N; 450lb
Load capacity n2001.70
MaterialStainless Steel
Mounting hole diameter0.2800
Mounting hole diameter (mm)7.11
Overall height1.9100
Overall length8.3300
Width distance between mounting holes1.2500
Width distance between mount holes in1-1/4
