De-Sta-Co

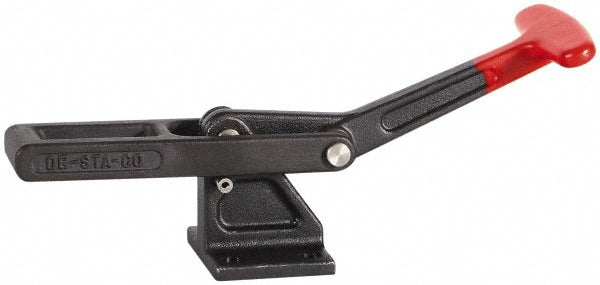

Toggle Clamp - De-Sta-Co 3011
MFR# 3011
$80.17List $91.67
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 3011 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar width0.7100
Base length1.97
Base length (mm)50.04
Base styleFlanged
Base to center of bar2.0000
Base width in2.5200
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement3.0000
Handle colorRed
Handle styleWhale Tail
Industry number3011
Length distance between mount holes in1-1/4
Load capacity8896.44N; 2000lb
Load capacity n8896.44
MaterialCarbon Steel
Mounting hole diameter0.3300
Mounting hole diameter (mm)8.38
Overall height3.6100
Overall length9.2800
Width distance between mounting holes1.7800
Width distance between mount holes (mm)45.21
