De-Sta-Co

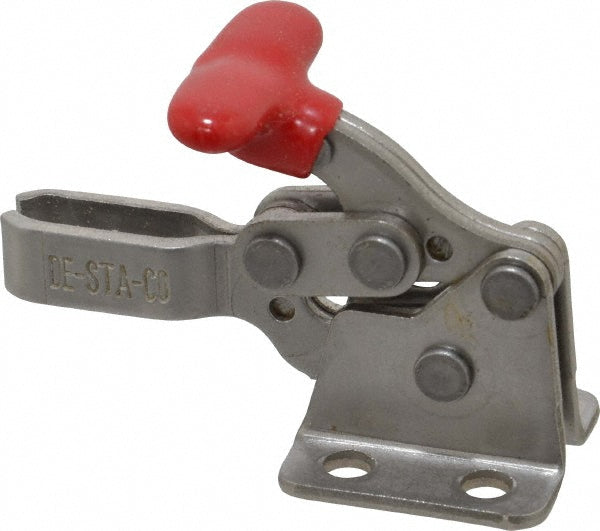

Toggle Clamp - De-Sta-Co 305-USS
MFR# 305-USS
$32.73
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 305-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees90
Bar styleU-Bar
Bar width0.3100
Base length (mm)25.91
Base styleFlanged
Base width in1.0000
Finish coatingZinc
Front of base to tip of toggle bar1.1900
Front of base to toggle tip1.19in
F 3 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees170
Handle orientationHorizontal
Handle styleT-Handle
Handle width1.0600
Height under bar0.4800
Holding capacity lb200.00
Holding capacity n890.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.53
MaterialStainless Steel
Maximum mechanical advantage02:01
Mounting hole diameter0.1800
Number of mounting holes4
Overall height1.4300
Overall length2.2100
Spindle includedYes
Spindle length1.1300
Spindle thread size10-32
Spindle travel in0.5000
Width distance between mount holes0.6300
