De-Sta-Co

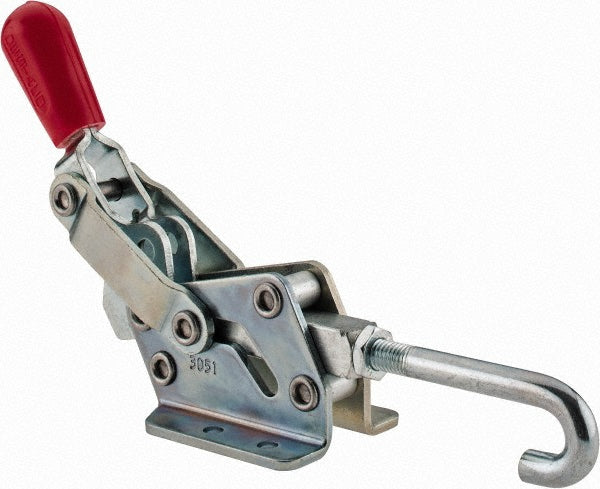

Toggle Clamp - De-Sta-Co 3051
MFR# 3051
$55.45List $58.00
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 3051 is a carbon steel toggle clamp.
Specifications
Bar styleJ-Hook
Bar width0.3100
Base length2.03
Base length (mm)51.56
Base styleFlanged
Base to center of bar0.6900
Base width in1.9300
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement0.7500
Handle colorRed
Handle styleStraight
IncludesJ-Hook Assembly
Length distance between mount holes in3/4
Load capacity6700N; 1507lb
Load capacity n6700.00
MaterialCarbon Steel
Mounting hole diameter0.2200
Mounting hole diameter (mm)5.59
Overall height1.7700
Overall length8.9800
Width distance between mounting holes1.3800
Width distance between mount holes (mm)35.05
