De-Sta-Co

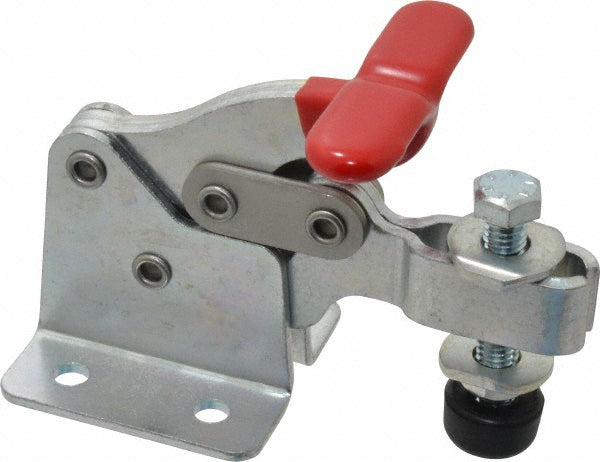

Toggle Clamp - De-Sta-Co 307-U
MFR# 307-U
$20.22List $24.93
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 307-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees92
Bar styleU-Bar
Bar width in1/2
Base length (mm)43.69
Base styleFlanged
Base width in1.8000
Finish coatingZinc
Front of base to tip of toggle bar1.8900
Front of base to toggle tip1.89in
F 3 001
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees173
Handle orientationHorizontal
Handle styleT-Handle
Handle width2.0000
Height under bar0.8900
Holding capacity lb350.00
Holding capacity n1560.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.91
MaterialCarbon Steel
Maximum mechanical advantage02:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height2.3600
Overall length3.6100
Spindle length (mm)43.00
Spindle thread sizeM8x1.25
Spindle travel in0.7500
Width distance between mount holes1.1400
