De-Sta-Co

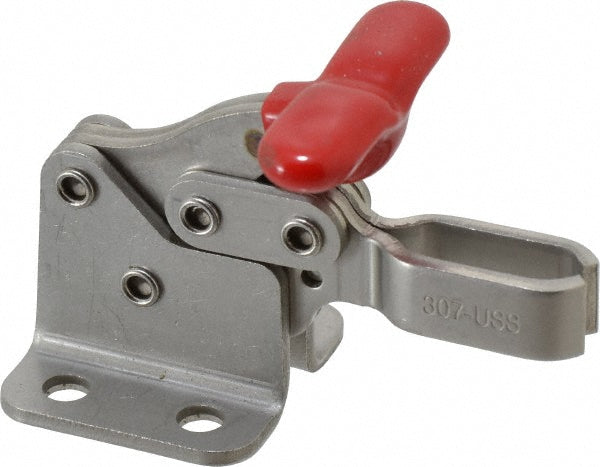

Toggle Clamp - De-Sta-Co 307-USS
MFR# 307-USS
$53.27List $53.33
Save 0%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 307-USS is a stainless steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees92
Bar styleU-Bar
Bar width in1/2
Base length (mm)43.69
Base styleFlanged
Base width in1.8000
Finish coatingZinc
Front of base to tip of toggle bar1.8900
Front of base to toggle tip1.89in
F 3 001
Handle colorRed
Handle materialStainless Steel
Handle movement degrees173
Handle orientationHorizontal
Handle styleT-Handle
Handle width2.0000
Height under bar0.8700
Holding capacity lb350.00
Holding capacity n1560.00
Includes(1) Spindle; (2) Nuts; (2) Washers
Length distance between mount holes in0.91
MaterialStainless Steel
Maximum mechanical advantage02:01
Mounting hole diameter0.2800
Number of mounting holes4
Overall height2.3600
Overall length3.6100
Spindle includedYes
Spindle length2.5000
Spindle thread size5/16-18
Spindle travel in0.7500
Width distance between mount holes1.1400
