De-Sta-Co

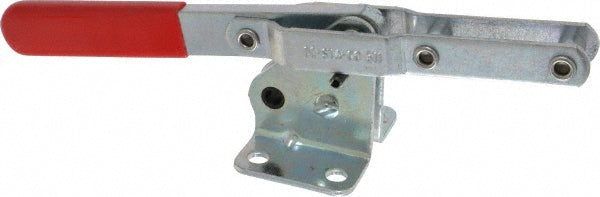

Toggle Clamp - De-Sta-Co 311
MFR# 311
$32.49List $40.78
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 311 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.1300
Bar width0.5600
Base length1.91
Base length (mm)48.51
Base styleFlanged
Base to center of bar1.9100
Base width in2.5300
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement3.3800
Handle colorRed
Handle styleStraight
Industry number311
Length distance between mount holes in1-1/4
Load capacity5337.87N; 1200lb
Load capacity n5337.87
MaterialCarbon Steel
Mounting hole diameter0.3300
Mounting hole diameter (mm)8.38
Overall height2.4400
Overall length9.4900
Width distance between mounting holes1.7800
Width distance between mount holes (mm)45.21
