De-Sta-Co

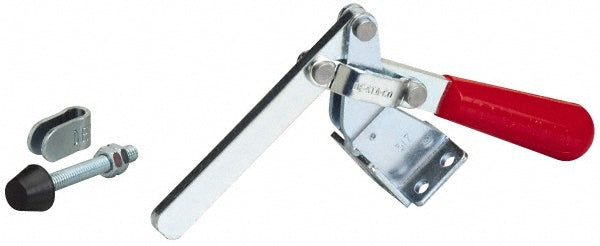

Toggle Clamp - De-Sta-Co 317-15
MFR# 317-15
$31.57List $39.63
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 317-15 is a carbon steel toggle clamp.
Specifications
Bar opening degrees185
Bar styleSolid
Base styleFlanged
Base width in1.5000
Front of base to tip of toggle bar3.1900
Front of base to toggle tip3.19in
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Height under bar2.6700
Holding capacity lb375.00
Holding capacity n1670.00
IncludesBolt Retainer; Spindle
Length distance between mount holes in0.63
MaterialCarbon Steel
Overall height5.6200
Overall length6.4400
Spindle length3
Spindle thread size5/16-18
Width distance between mount holes1.0000
