De-Sta-Co

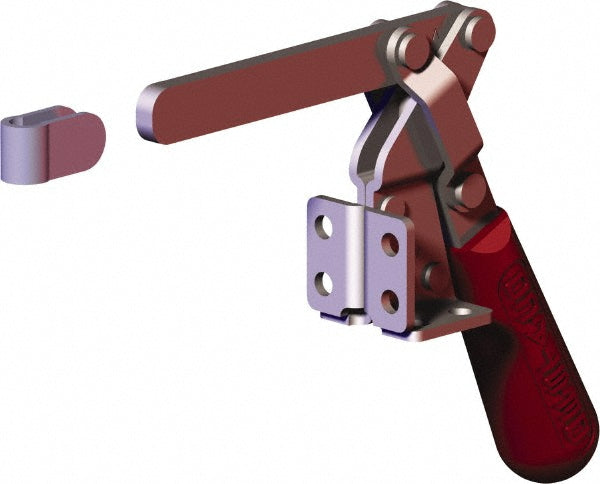

Toggle Clamp - De-Sta-Co 317-S
MFR# 317-S
$28.45List $35.71
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 317-S is a carbon steel toggle clamp.
Specifications
Bar end typeClosed
Bar opening degrees185
Bar styleSolid
Bar thickness0.2500
Bar width0.6300
Base length (mm)35.05
Base styleFlanged
Base width in1.5000
Front of base to tip of toggle bar3.2000
Front of base to toggle tip3.20in
F 3 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Height under bar2.6800
Holding capacity lb400.16
Holding capacity n1780.00
IncludesBolt Retainer
Length distance between mount holes in0.63
MaterialCarbon Steel
Maximum mechanical advantage05:01
Mounting hole diameter0.2700
Number of mounting holes8
Overall height5.2800
Width distance between mount holes1.0000
