De-Sta-Co

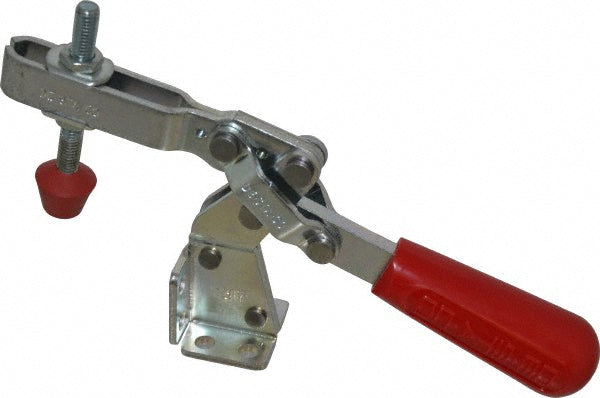

Toggle Clamp - De-Sta-Co 317-U
MFR# 317-U
$28.53List $35.19
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 317-U is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees185
Bar styleU-Bar
Bar width0.6300
Base length (mm)35.05
Base styleFlanged
Base width in1.5000
Finish coatingZinc
Front of base to tip of toggle bar2.5300
Front of base to toggle tip2.53in
F 7 101
Handle colorRed
Handle materialCarbon Steel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Handle width1.0000
Height under bar2.6800
Holding capacity lb375.00
Holding capacity n1670.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in0.63
MaterialCarbon Steel
Maximum mechanical advantage08:01
Mounting hole diameter0.2700
Number of mounting holes4
Overall height5.2800
Overall length6.0700
Spindle length3
Spindle thread size5/16-18
Spindle travel in1.9700
Width distance between mount holes1.0000
