De-Sta-Co

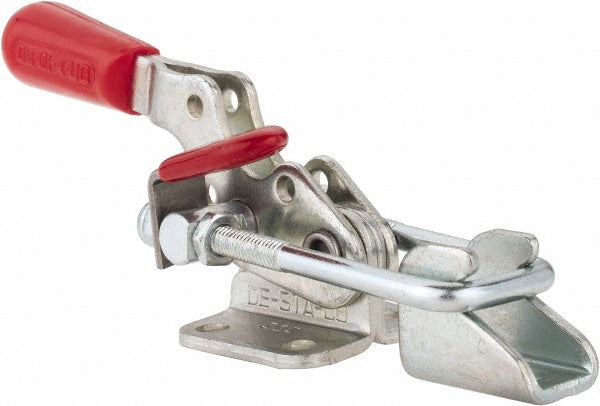

Toggle Clamp - De-Sta-Co 323
MFR# 323
$14.94List $18.75
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 323 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.1300
Bar width0.7500
Base length1.02
Base length (mm)25.91
Base styleFlanged
Base to center of bar0.4700
Base width in1.1000
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement1.1800
Handle colorRed
Handle styleStraight
IncludesLatch Plate; Patented Thumb Control Lever; Threaded U-Hook
Industry number323
Length distance between mount holes0.6300
Load capacity1601.36N; 360lb
Load capacity n1601.36
MaterialCarbon Steel
Mounting hole diameter0.1700
Mounting hole diameter (mm)4.32
Overall height1.1900
Overall length3.8800
Width distance between mounting holes0.7500
Width distance between mount holes in3/4
