De-Sta-Co

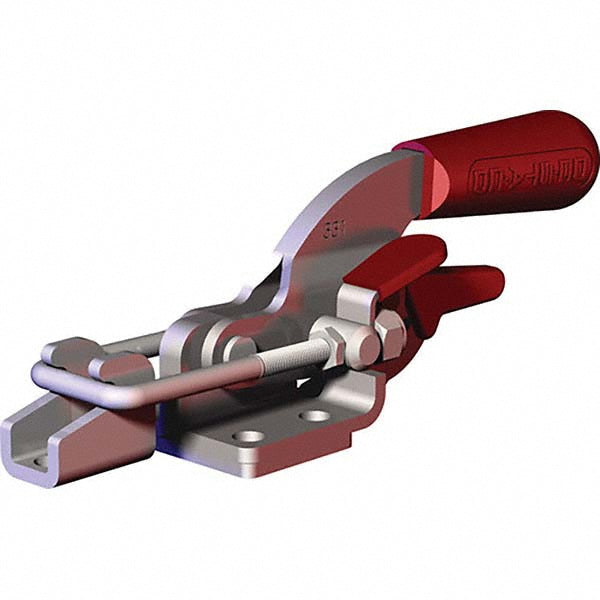

Toggle Clamp - De-Sta-Co 331-R-M-100
MFR# 331-R-M-100
$74.18
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 331-R-M-100 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar width1.0000
Base length1.56
Base length (mm)39.62
Base styleFlanged
Base to center of bar0.6600
Base width in1.7400
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement1.7500
Handle colorRed
Handle styleStraight
IncludesLatch Plate; Patented Thumb Control Lever; Threaded U-Hook; Toggle Lock Plus
Length distance between mount holes in3/4
Load capacity3200N; 719lb
Load capacity n3200.00
MaterialCarbon Steel
Mounting hole diameter0.2700
Mounting hole diameter (mm)6.86
Overall height2.0100
Overall length10.5315
Width distance between mounting holes1.2500
Width distance between mount holes in1-1/4
