De-Sta-Co

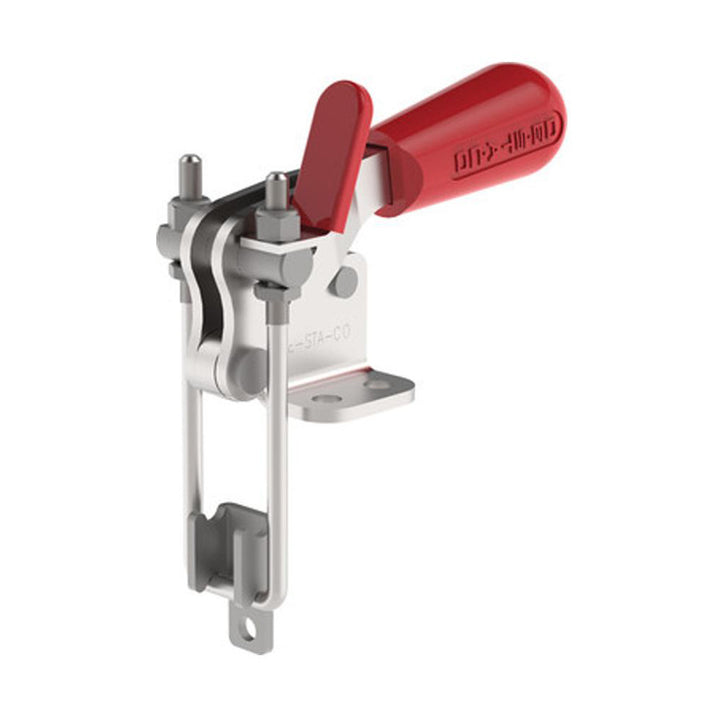

Toggle Clamp - De-Sta-Co 334-SS
MFR# 334-SS
$61.14List $64.88
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 334-SS is a stainless steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.2500
Bar width1.1300
Base length1.31
Base length (mm)33.27
Base styleFlanged
Base to center of bar0.3500
Base width in1.5600
Body materialStainless Steel
Clamping orientationVertical
Drawing movement2.0400
Handle colorRed
Handle styleStraight
IncludesLatch Plate; Patented Thumb Control Lever; Threaded U-Hook
Industry number334-SS
Length distance between mount holes in3/4
Load capacity4448.22N; 1000lb
Load capacity n4448.22
MaterialStainless Steel
Mounting hole diameter0.2800
Mounting hole diameter (mm)7.11
Overall height5.5200
Overall length4.1000
Width distance between mounting holes1.0000
Width distance between mount holes in1
