De-Sta-Co
Toggle Clamp - De-Sta-Co 344-R
MFR# 344-R
$84.31List $93.49
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

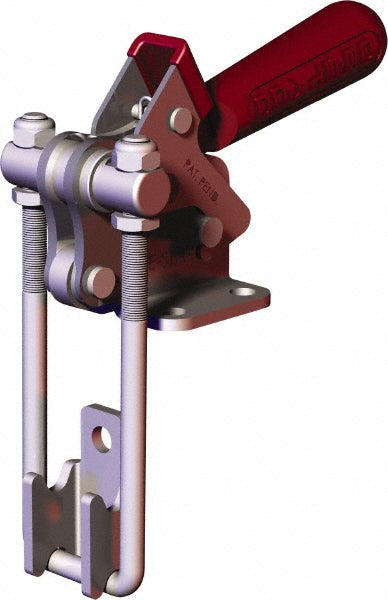

The De-Sta-Co 344-R is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar width1.1300
Base length1.94
Base length (mm)49.28
Base styleFlanged
Base to center of bar0.3500
Base width in1.5600
Body materialCarbon Steel
Clamping orientationVertical
Drawing movement2.4600
Handle colorRed
Handle styleStraight
IncludesLatch Plate; Threaded U-Hook; Thumb Control Lever; Toggle Lock Plus
Length distance between mount holes1.3100
Load capacity8900N; 2001lb
Load capacity n8900.00
MaterialCarbon Steel
Mounting hole diameter0.3400
Mounting hole diameter (mm)8.64
Overall height3.3900
Overall length5.7700
Width distance between mounting holes1.0000
Width distance between mount holes in1
