De-Sta-Co

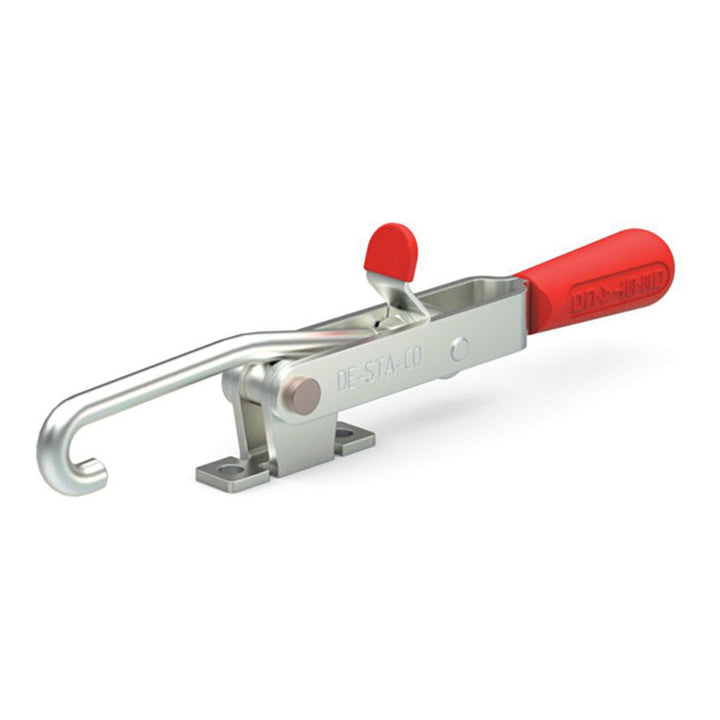

Toggle Clamp - De-Sta-Co 351-B
MFR# 351-B
$19.13List $24.01
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 351-B is a carbon steel toggle clamp.
Specifications
Bar styleJ-Hook
Bar thickness0.3100
Bar width0.3800
Base length2.00
Base length (mm)50.80
Base styleRight Flanged
Base to center of bar0.8600
Base width in0.5600
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement4.0000
Handle colorRed
Handle styleThumb
IncludesPatented Thumb Control Lever; Threaded J-Hook
Industry number351-B
Length distance between mount holes in1-1/2
Load capacity1668.08N; 375lb
Load capacity n1668.08
MaterialCarbon Steel
Mounting hole diameter0.2700
Mounting hole diameter (mm)6.86
Overall height1.8300
Overall length8.8200
Width distance between mounting holes0.7500
Width distance between mount holes in3/4
