De-Sta-Co

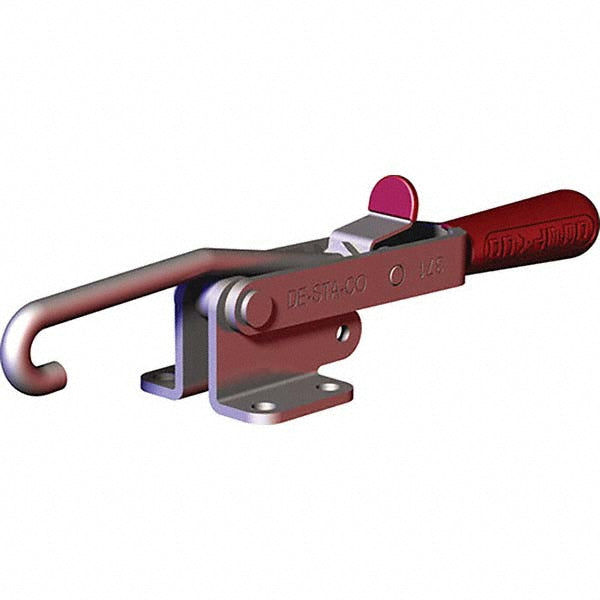

Toggle Clamp - De-Sta-Co 371-SS
MFR# 371-SS
$109.77List $116.61
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The De-Sta-Co 371-SS is a stainless steel toggle clamp.
Specifications
Bar styleJ-Hook
Base length1.94
Base length (mm)49.28
Base styleFlanged
Base to center of bar1.4200
Base width in2.6300
Body materialStainless Steel
Clamping orientationHorizontal
Drawing movement5.3800
Handle colorRed
Handle styleStraight
IncludesLatch Plate; Patented Thumb Control Lever; Threaded J-Hook
Length distance between mount holes in1-1/4
Load capacity3340N; 751lb
Load capacity n3340.00
MaterialStainless Steel
Mounting hole diameter0.3400
Mounting hole diameter (mm)8.64
Overall height2.5800
Overall length11.8900
Width distance between mounting holes1.9400
Width distance between mount holes (mm)49.28
